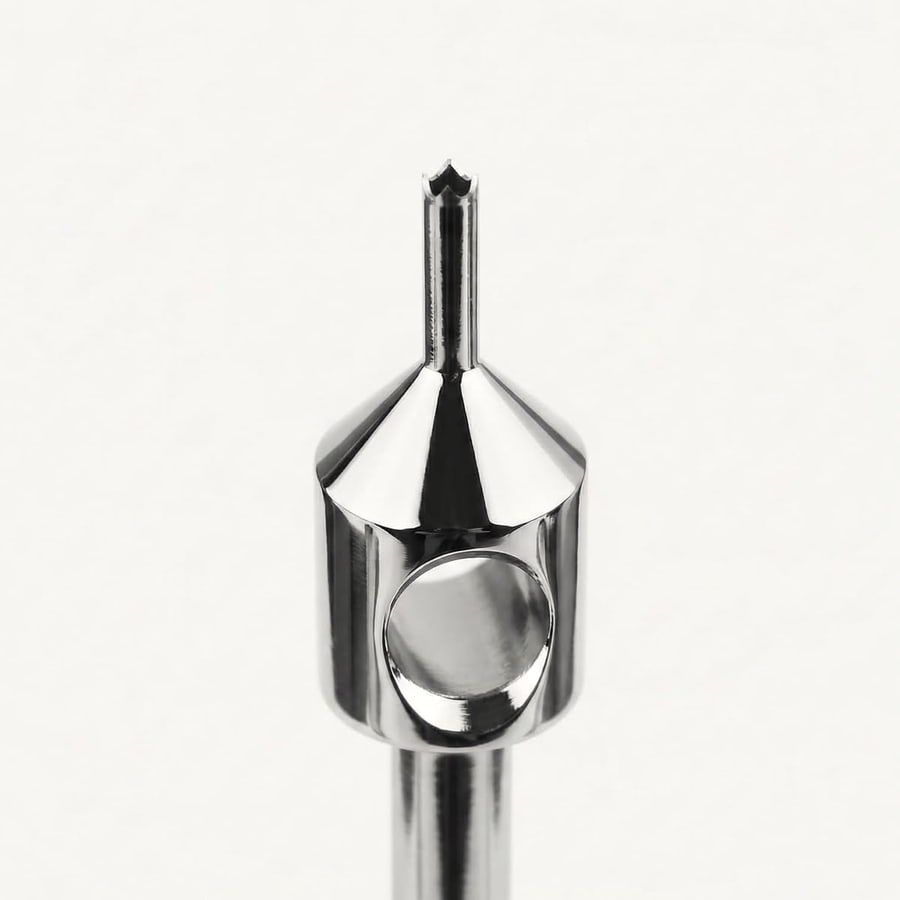

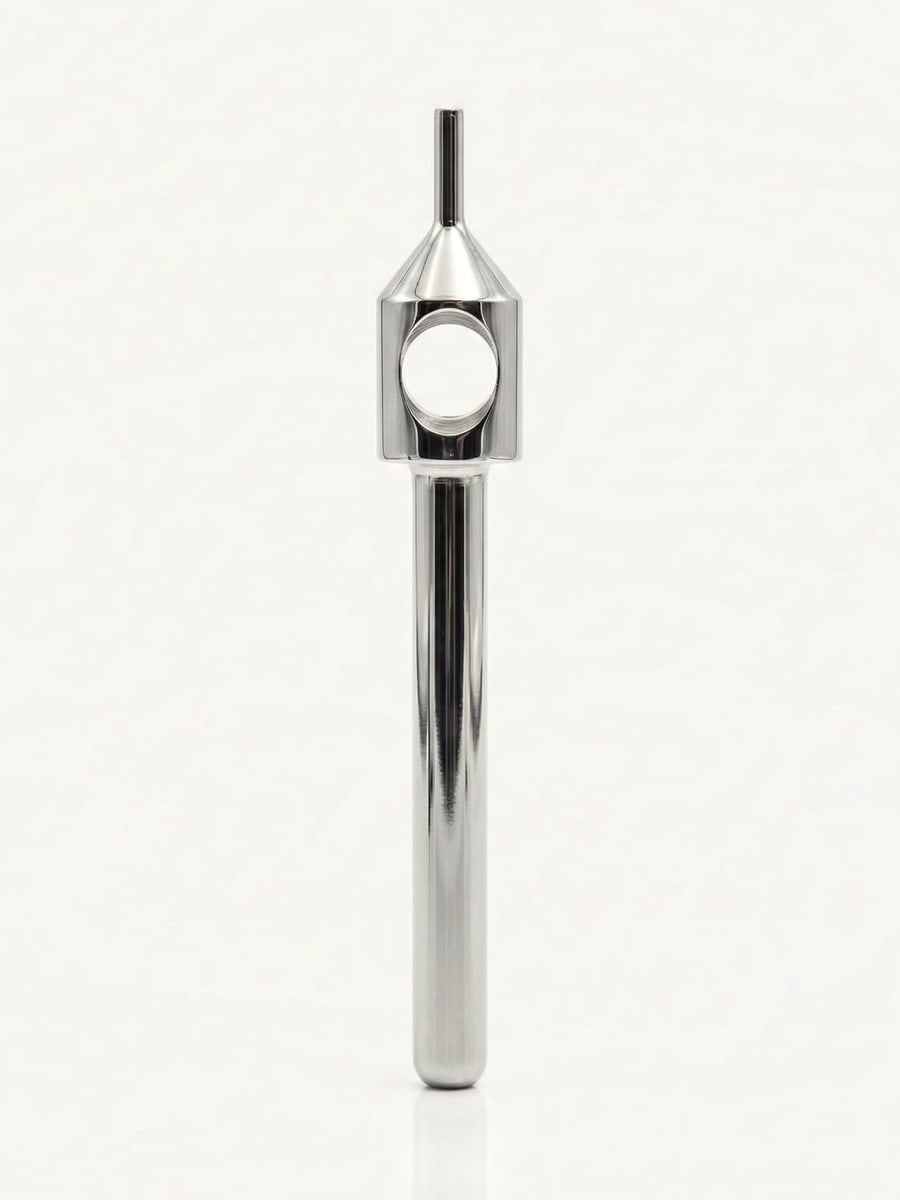

A FUE punch is the hollow cutting instrument used in follicular unit extraction (FUE) hair transplantation. It scores the skin around a follicular unit so the graft can be lifted from the donor area, and its diameter and working length are chosen to match the graft caliber and follicle depth of the patient.

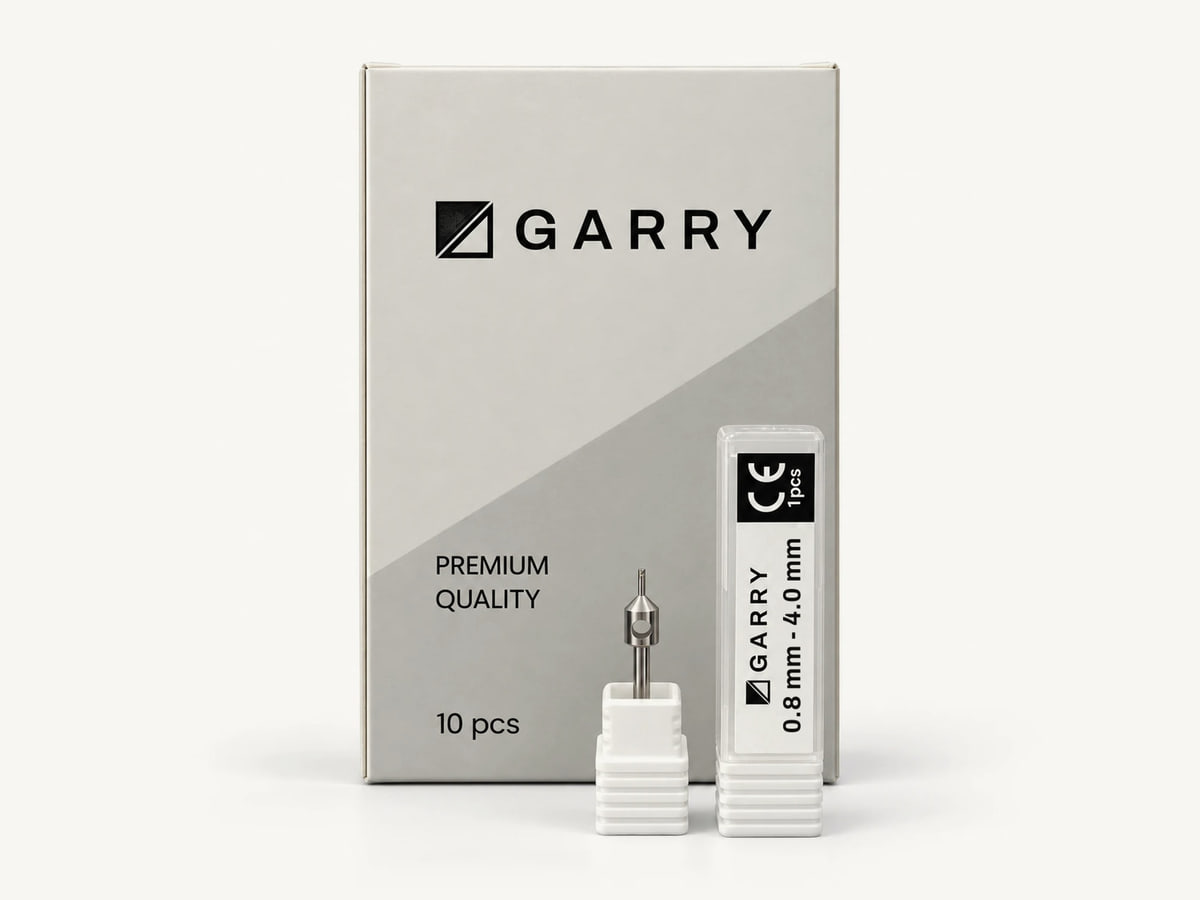

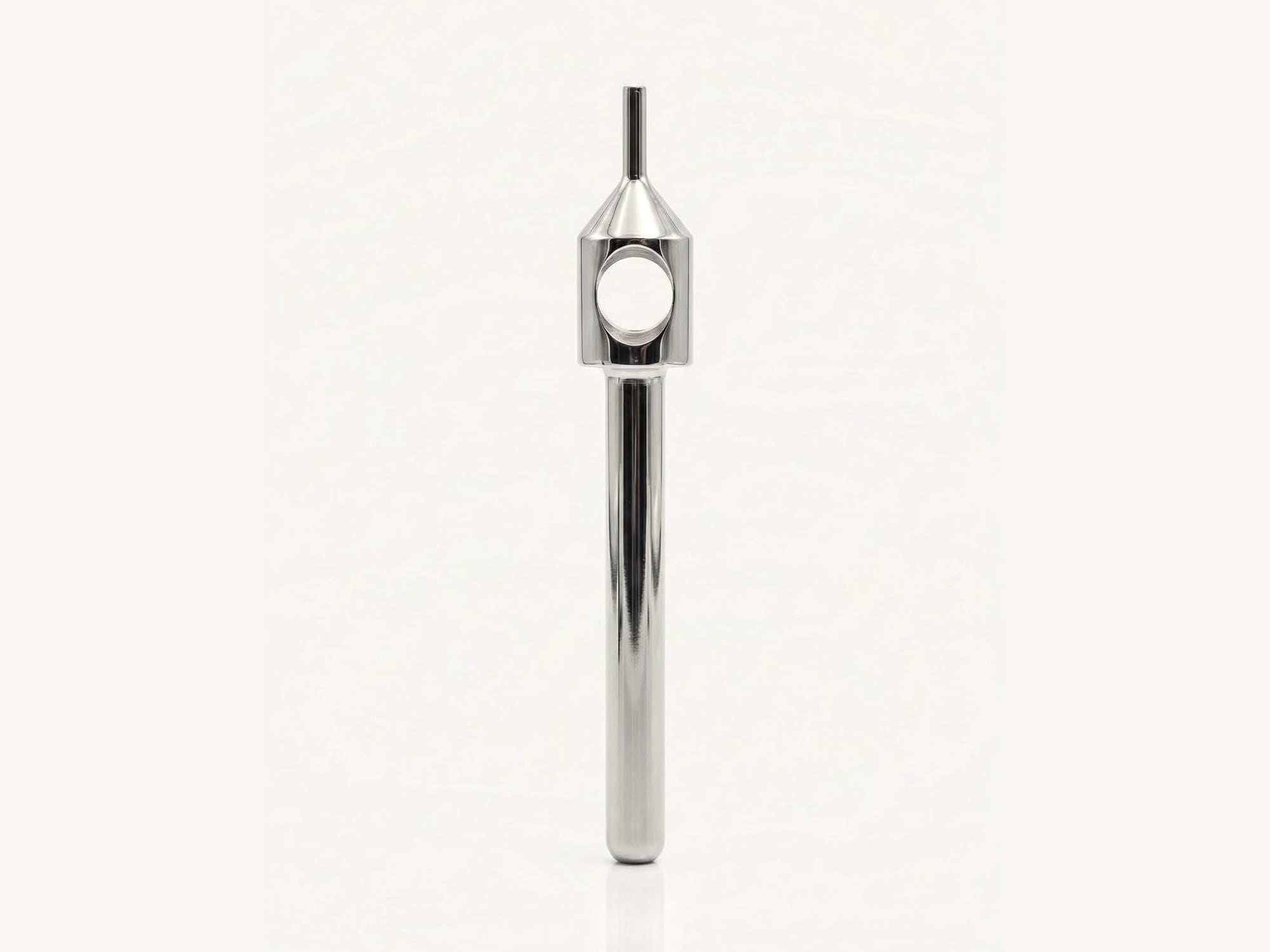

Garry Fue Punches are crafted from Japanese Steel (Garry J-Steel). The range covers 5 inner diameters (Ø 0.7, 0.75, 0.8, 0.85 and 0.9 mm) and 5 working lengths from 2.5 to 5.0 mm, 25 order codes in total. Every punch is manufactured in Türkiye and inspected individually before it ships.

Material

Crafted from Japanese Steel (Garry J-Steel)

Sterilization

Steam autoclave at 134 °C

Size range

Ø 0.7 - 0.9 mm, working length 2.5 - 5.0 mm

Order codes

PCH-070-25 … PCH-090-50

Material and sterilization

Punches are crafted from Japanese Steel (Garry J-Steel), machined and individually inspected in Türkiye. The material is stated on every product page.

Reprocessing: rinse immediately after the session, ultrasonic-clean in a neutral-pH detergent and steam-sterilize at 134 °C. Clean the lumen by flow rather than with wires or brushes, and store the punch in its autoclavable case.

Long hair FUE, also called no-shave or unshaven FUE, is follicular unit extraction performed without shaving the donor area. Each follicular unit is excised with its hair shaft intact, so the patient leaves without a shaved band and the surgeon sees the hair's real length and direction at placement.

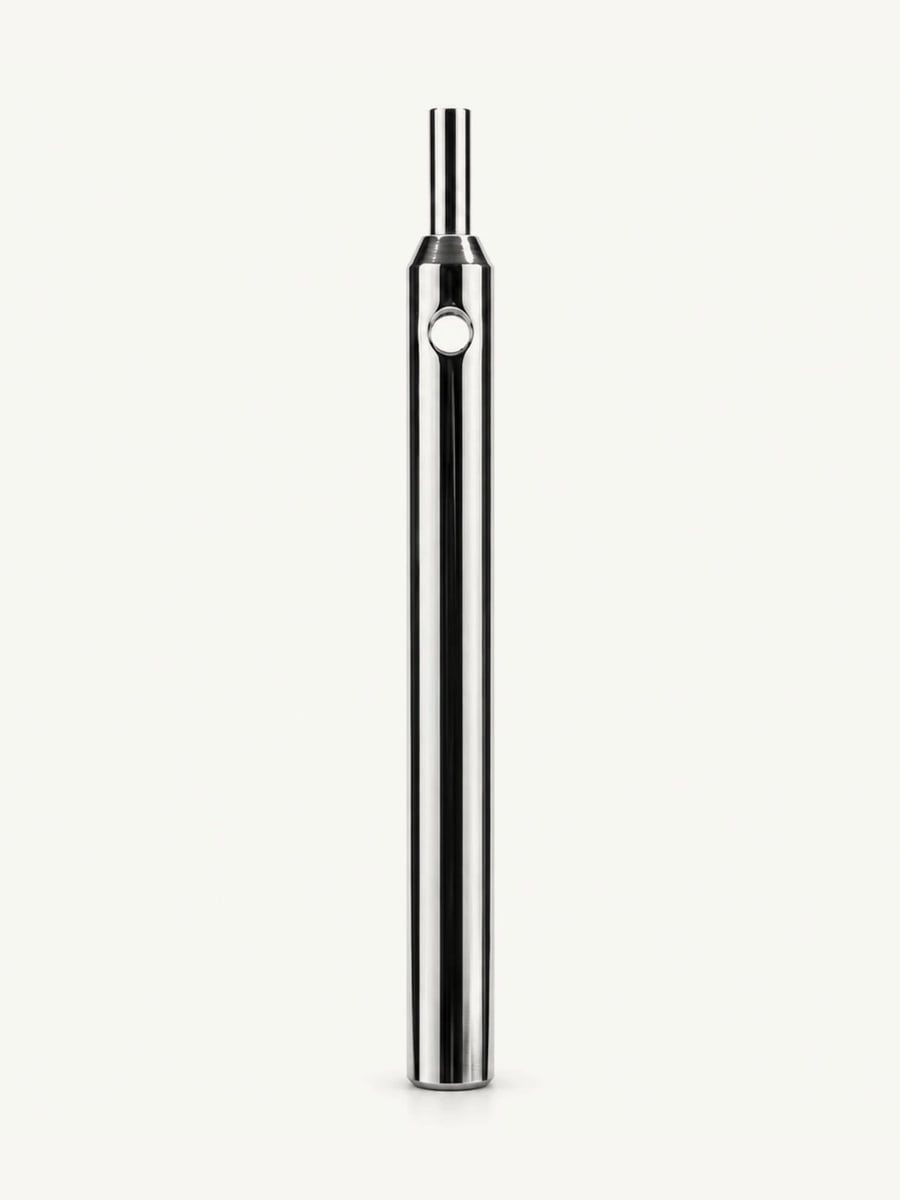

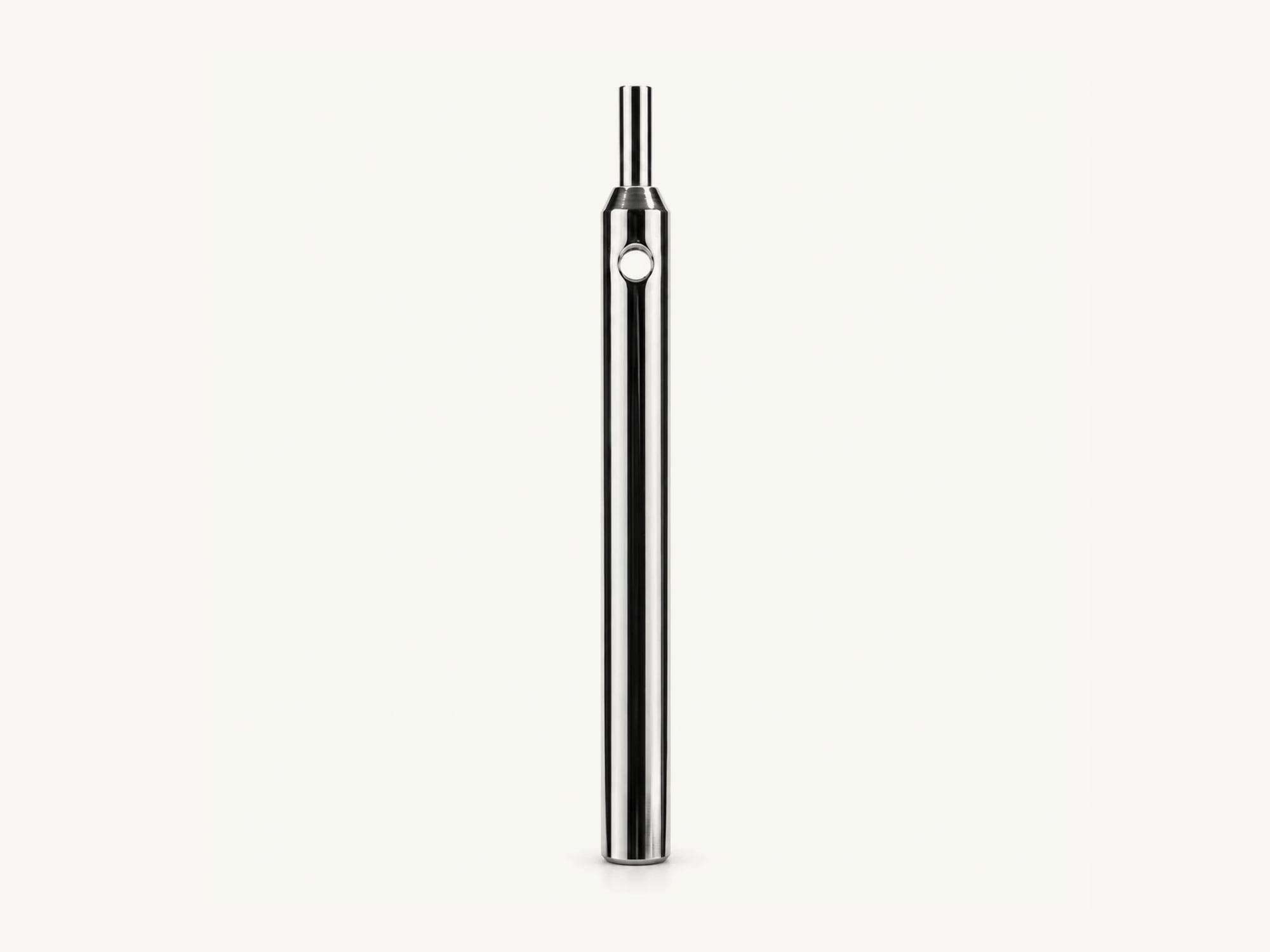

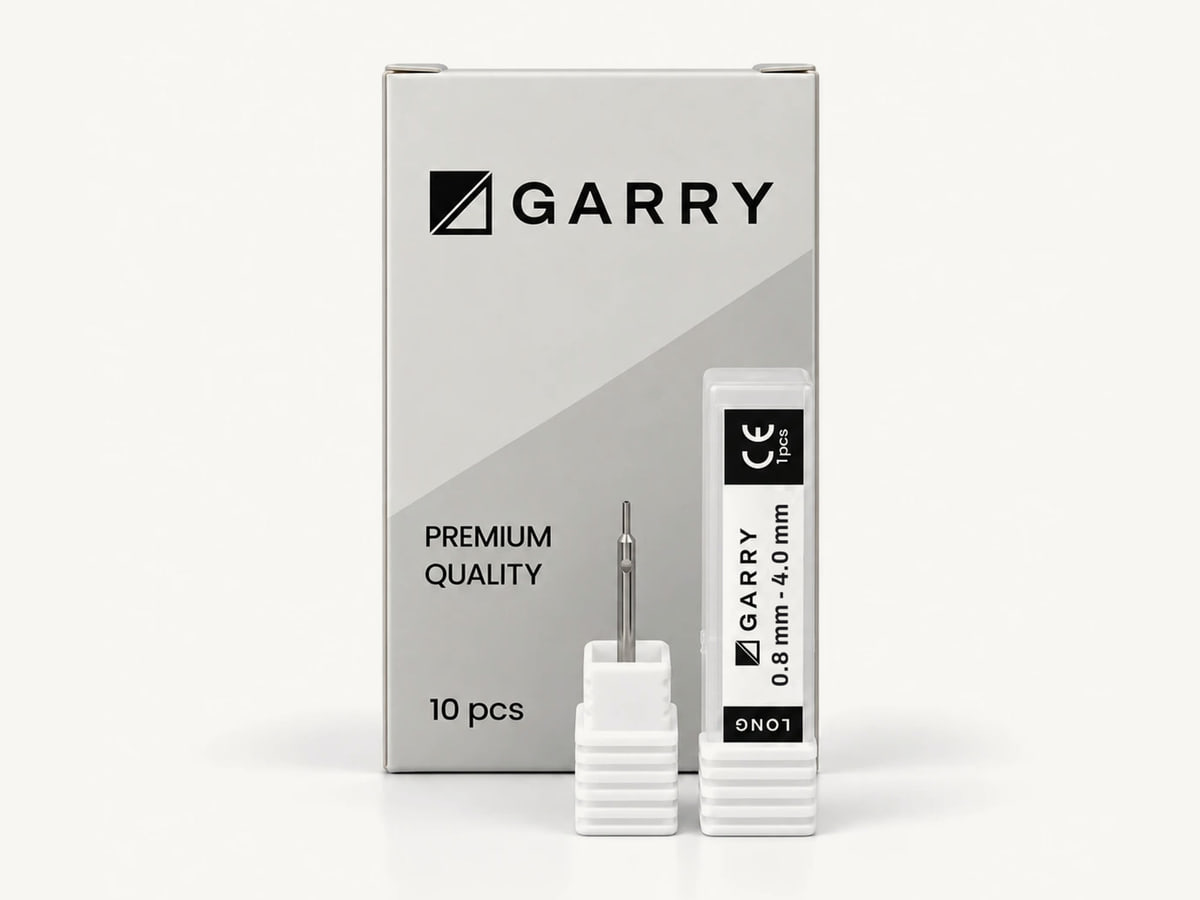

The Garry Long Hair Fue Punch is designed for shaft-intact excision. It is crafted from Japanese Steel (Garry J-Steel), comes in 3 inner diameters (Ø 0.8, 0.85 and 0.9 mm) with a 4.0 mm working length and is inspected individually before it ships.

Material

Crafted from Japanese Steel (Garry J-Steel)

Sterilization

Steam autoclave at 134 °C

Size range

Ø 0.8 - 0.9 mm, working length 4.0 mm

Order codes

LPCH-080-40 … LPCH-090-40

Long hair punch and standard FUE punch

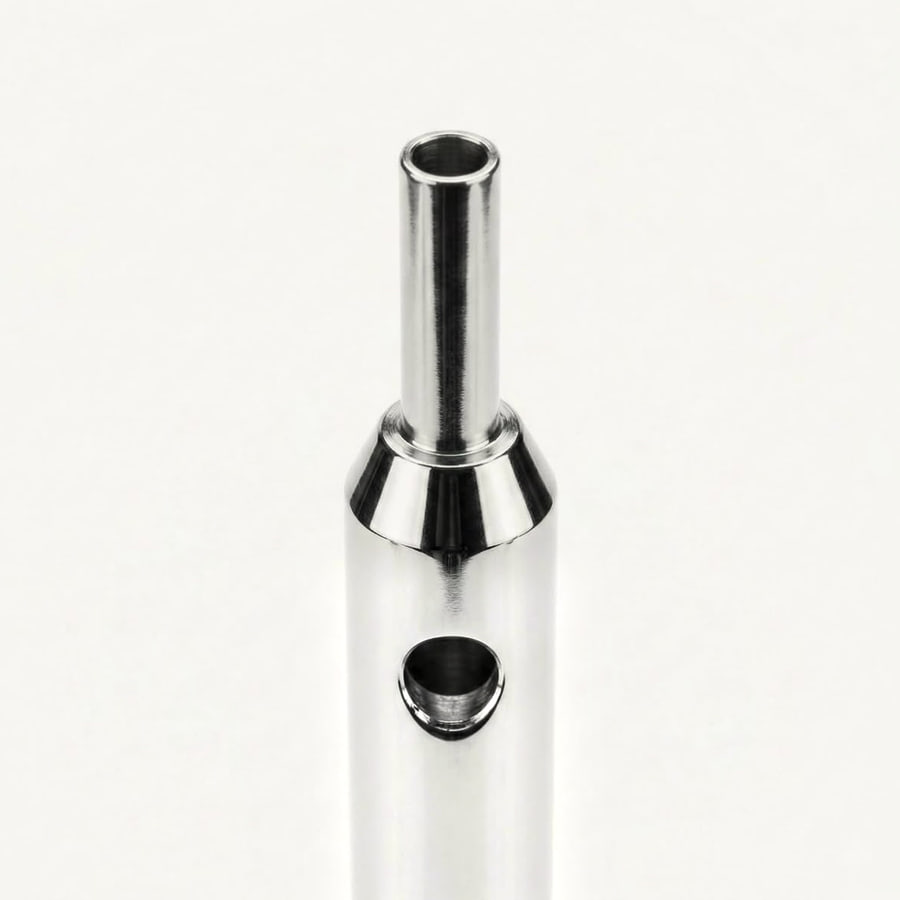

The bore diameters overlap with the standard Fue Punch line, but the edge is designed for excision with the hair shaft still in the lumen. Both lines are machined in Türkiye and inspected individually before release. Long hair extraction is technically demanding, so a sensible first order is an evaluation quantity to try on comparable sessions.

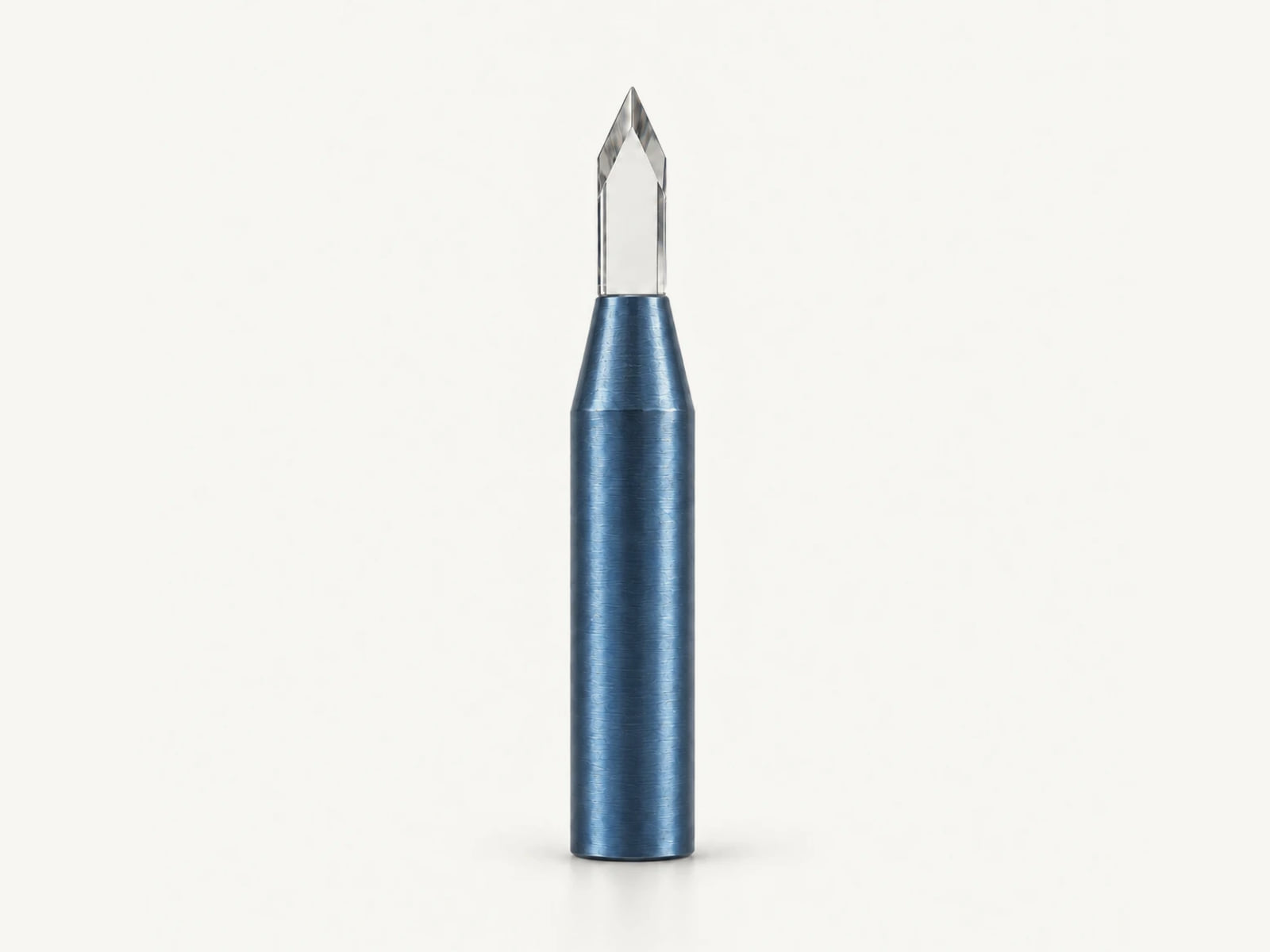

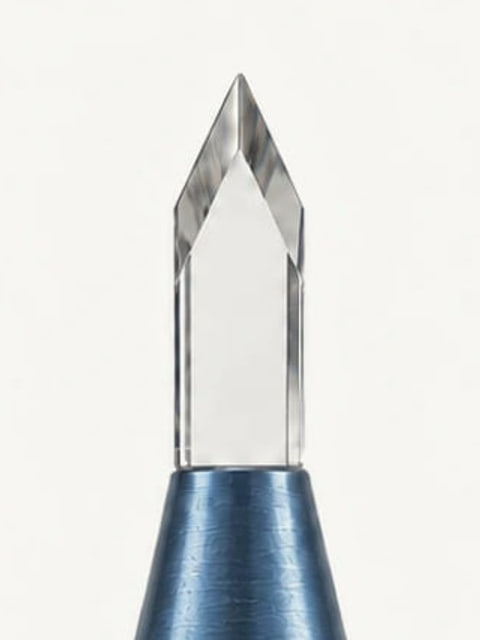

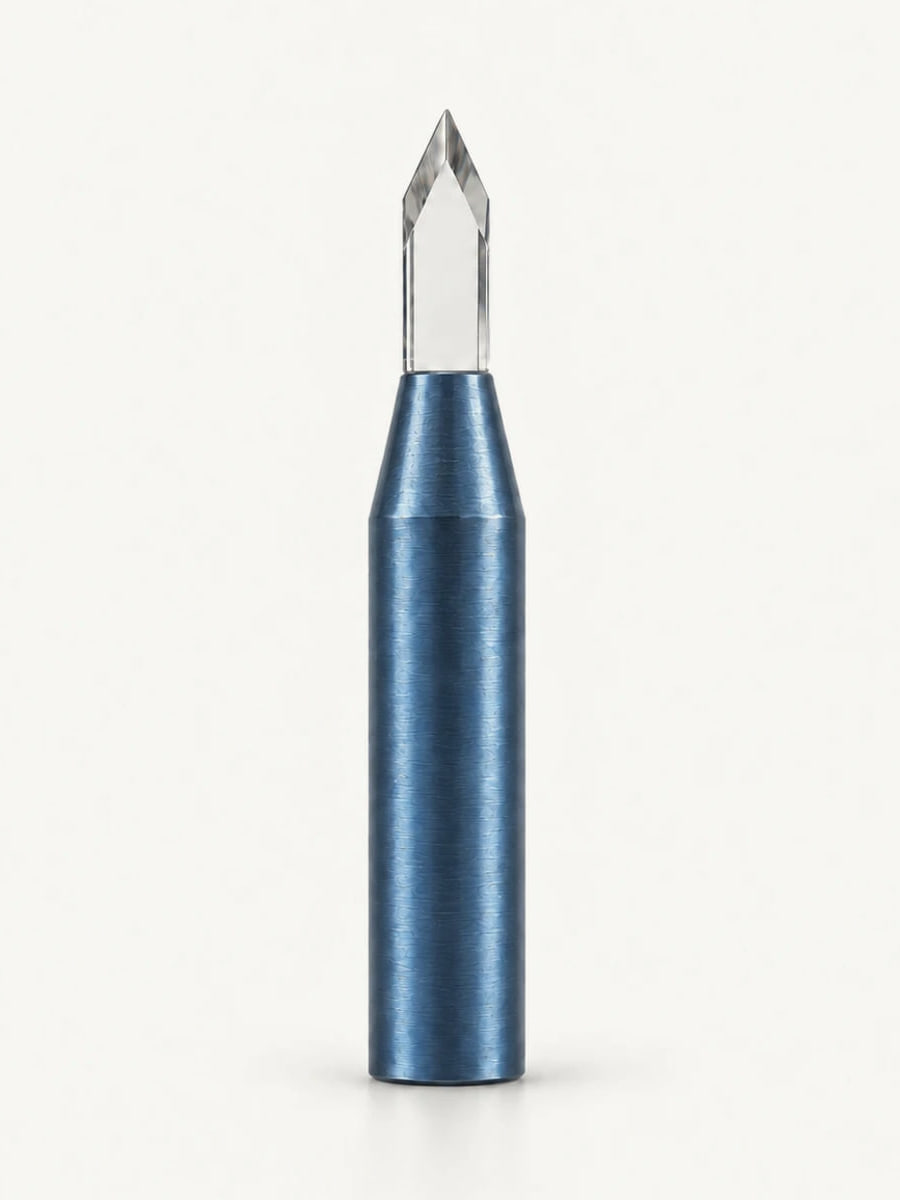

A sapphire blade is a recipient-site instrument made of sapphire crystal. In Sapphire FUE hair transplantation it opens the recipient channels into which grafts are placed, and its hardness lets it take and hold a smooth, fine edge.

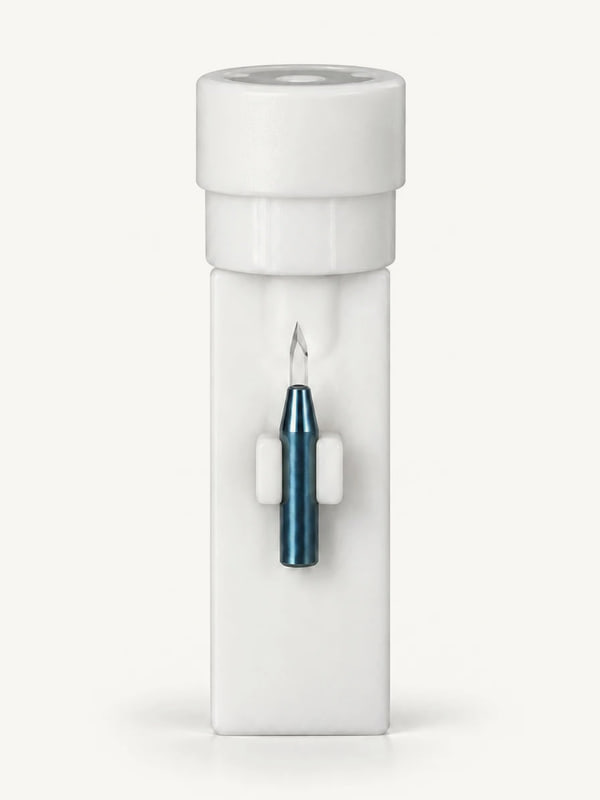

Garry Sapphire Blades come in 7 widths from 1.1 to 1.7 mm in 0.1 mm steps, each with its own order code from SF-110 to SF-170. Every blade is supplied in protective single-blade packaging, 10 blades per box, and inspected individually before it ships.

Material

Sapphire Crystal

Sterilization

Steam autoclave at 134 °C

Size range

Blade width 1.1 - 1.7 mm

Order codes

SF-110 … SF-170

Specifications

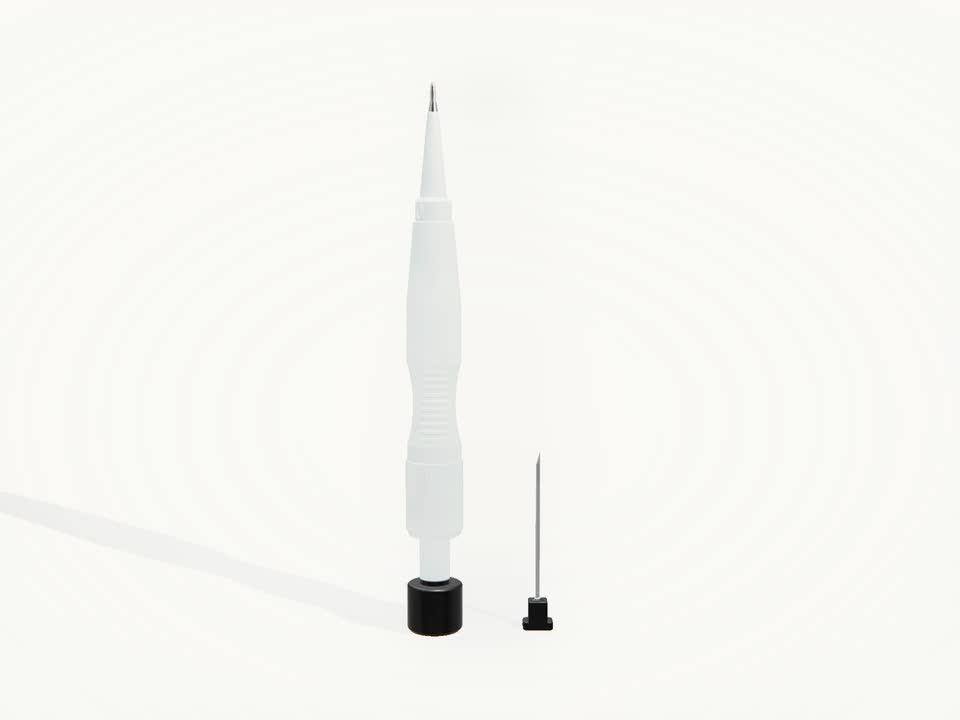

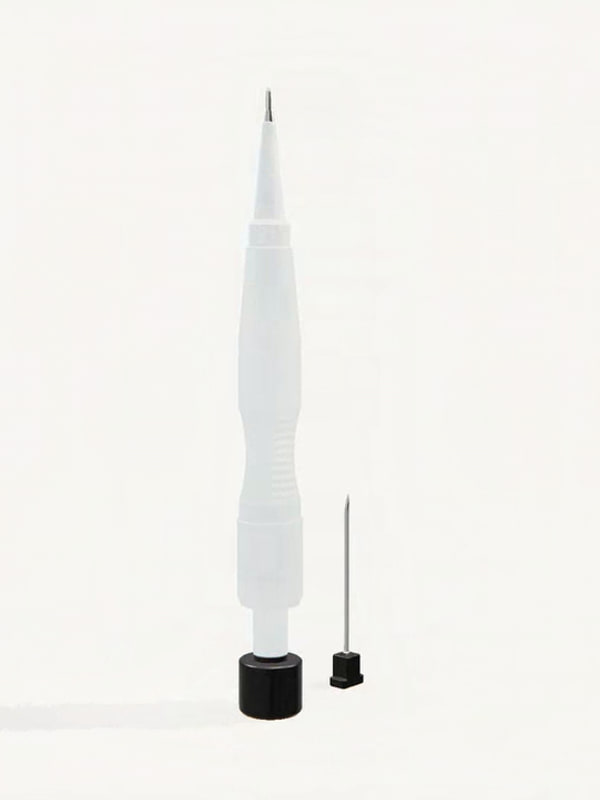

A DHI implanter pen is the instrument used in direct hair implantation (DHI) to create the recipient site and place the graft in a single step. The graft is loaded into the needle, the pen is set at the planned angle and depth, and the spring-loaded plunger releases the graft as the needle withdraws.

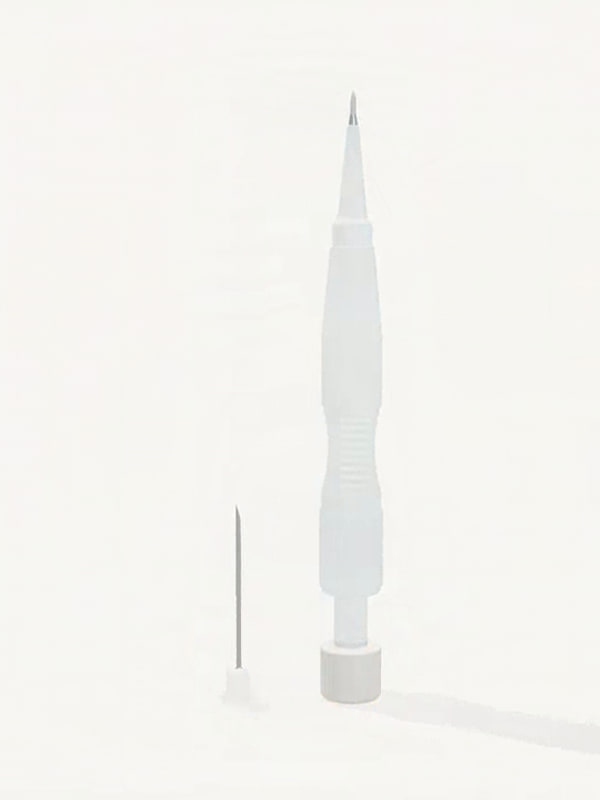

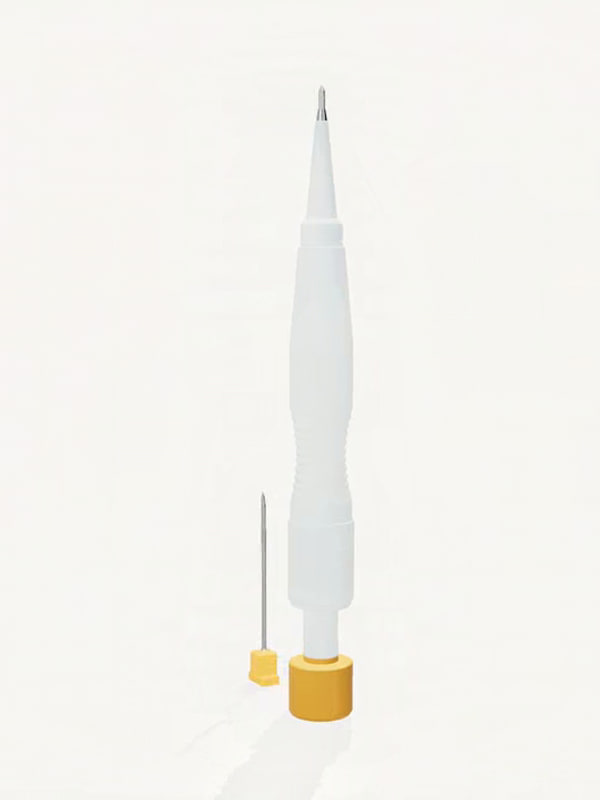

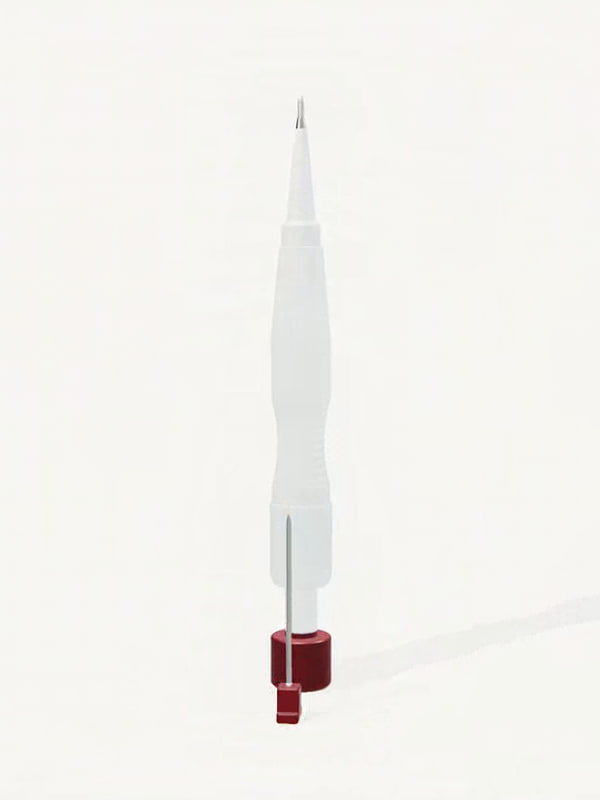

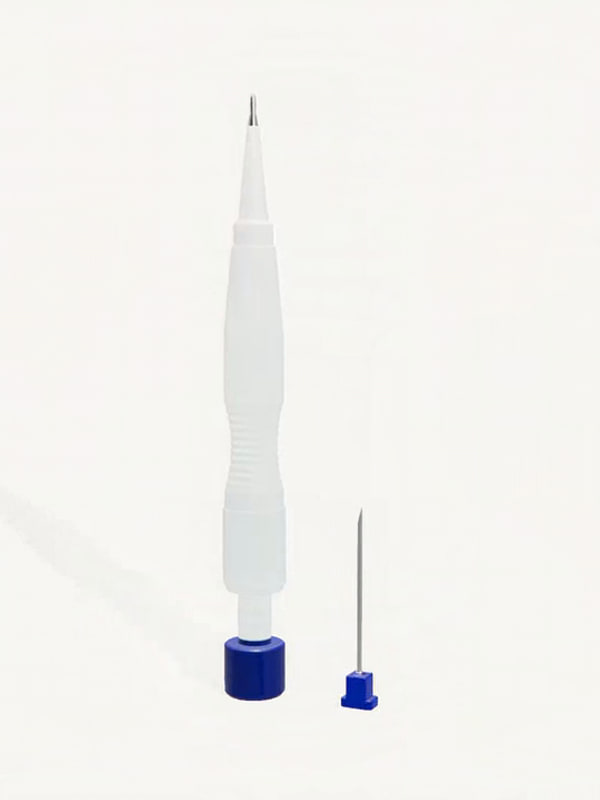

Garry DHI Implanter Pens use a spring-loaded mechanism with a positive needle seat and an adjustable needle depth, and come in 5 needle diameters, each in its own colour: Ø 0.7 mm yellow, 0.8 mm blue, 0.9 mm red, 1.0 mm white and 1.1 mm black. Garry DHI Needles are crafted from Japanese Steel (Garry J-Steel), supplied separately by diameter in the same colour as the pen and inspected individually before they ship.

Material

Medical-grade steel pen, Japanese Steel (Garry J-Steel) needles

Sterilization

Steam autoclave at 134 °C

Size range

Needle diameter Ø 0.7 - 1.1 mm, pen and needle matched by diameter

Order codes

DHI-PEN-070 … DHI-PEN-110 · DHI-TIP-070 … DHI-TIP-110

Specifications

Overview

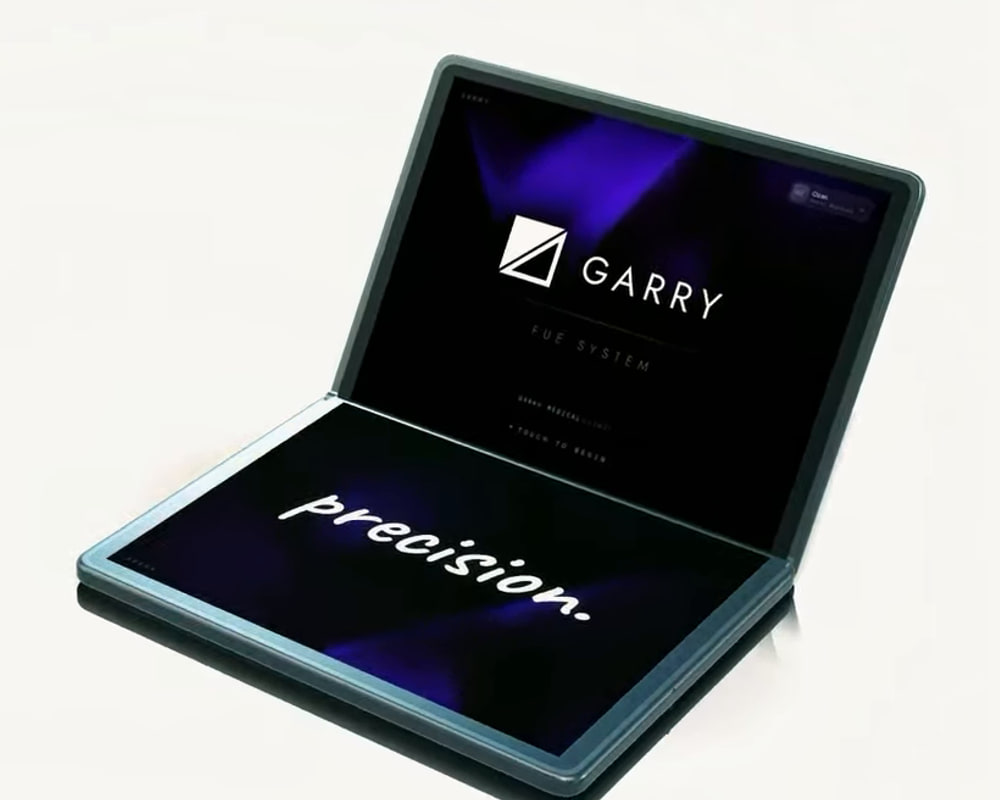

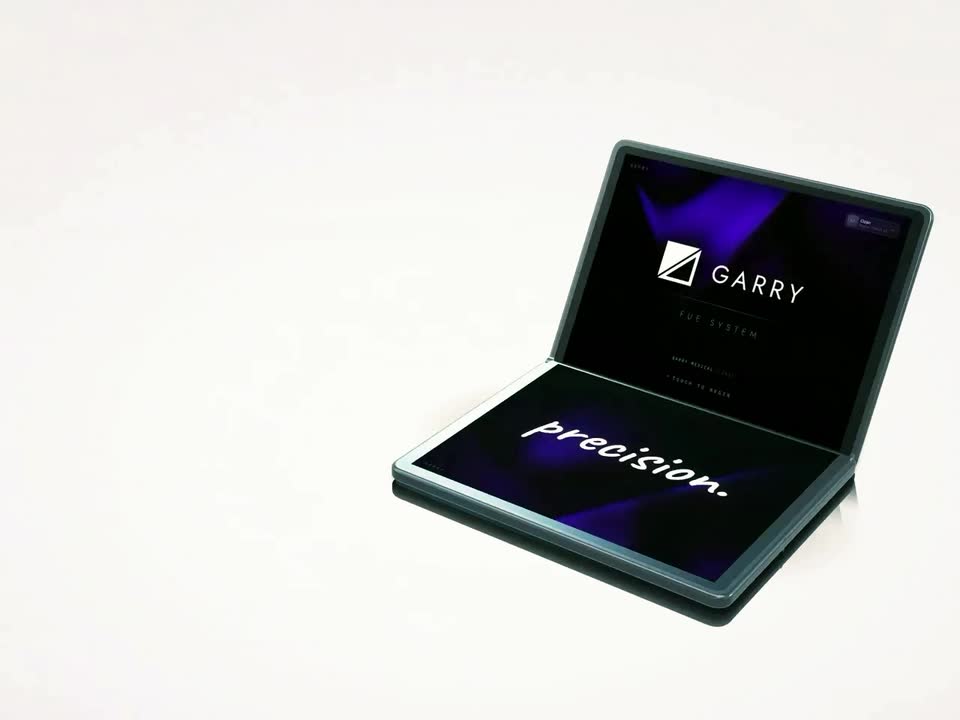

Our hair transplant machine, designed around the FUE workflow and made in Türkiye.
